QW,LW,GW,WQ Series submersible not-clogging sewage pump
Summary:
Submersible type and pipeline type and vertical type etc not-clogging sewage pump is the new ones with energy-saving and high effiiciency. The pumps adopt the impeller with single passage and hard alloy double rotary seals. Electric motor is devided by oil chamber. The pumps have the advantages such as not-clogging and wearable and convenient operation and energy-saving and hight efficiency.
|
The pumps are suitable to transport the industrial water and city waste water with solid grain and fiber. They can also be used as discharge water and paper pulp pump and filter and washing and cooling and circulation pump and gardening pump. They are widely used in mine and instructure and hospital and restaurant and waste water etc conditions.

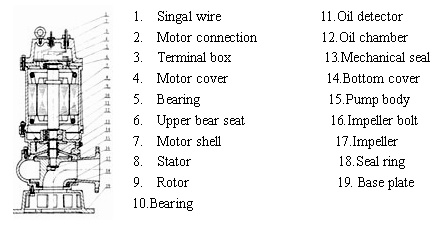

Structure:
 |
Parameter:
|
Model |
Characteristic |
Power
(KW) |
Rotary speed
(r/min) |
Voltage
(V) |
|
Outlet
(mm) |
Capacity
(m3/h) |
Head
(m) |
|
25-8-22 |
25 |
8 |
22 |
1.1 |
2900 |
380 |
|
32-10-15 |
32 |
10 |
15 |
1.5 |
2900 |
〃 |
|
40-15-30 |
40 |
15 |
30 |
2.2 |
1900 |
〃 |
|
50-20-7 |
50 |
20 |
7 |
0.75 |
1450 |
〃 |
|
50-20-15 |
50 |
20 |
15 |
1.5 |
2900 |
〃 |
|
50-15-25 |
50 |
15 |
25 |
2.2 |
2900 |
〃 |
|
50-18-30 |
50 |
18 |
30 |
3 |
2900 |
〃 |
|
65-25-15 |
65 |
25 |
15 |
2.2 |
2900 |
〃 |
|
65-25-30 |
65 |
25 |
30 |
4 |
2900 |
〃 |
|
80-40-7 |
80 |
40 |
7 |
2.2 |
1450 |
〃 |
|
80-40-15 |
80 |
40 |
15 |
4 |
2900 |
〃 |
|
80-65-25 |
80 |
65 |
25 |
7.5 |
2900 |
〃 |
|
100-85-10 |
100 |
85 |
10 |
4 |
1450 |
〃 |
|
100-100-15 |
100 |
100 |
15 |
7.5 |
1450 |
〃 |
|
100-85-20 |
100 |
85 |
20 |
7.5 |
1450 |
〃 |
|
100-100-25 |
100 |
100 |
25 |
11 |
1450 |
〃 |
|
100-100-35 |
100 |
100 |
35 |
15 |
1450 |
〃 |
|
125-115-15 |
125 |
115 |
15 |
15 |
1450 |
〃 |
|
150-180-15 |
150 |
180 |
15 |
15 |
1450 |
〃 |
|
150-180-20 |
150 |
180 |
20 |
18.5 |
1450 |
〃 |
|
150-180-30 |
150 |
180 |
30 |
22 |
1450 |
〃 |
|
150-180-35 |
150 |
180 |
35 |
30 |
1450 |
〃 |
|
200-300-10 |
200 |
300 |
10 |
11 |
980 |
〃 |
|
200-300-15 |
200 |
300 |
15 |
22 |
1450 |
〃 |
|
200-300-20 |
200 |
300 |
20 |
30 |
1450 |
〃 |
|
200-300-25 |
200 |
300 |
25 |
37 |
1450 |
〃 |
|
250-600-10 |
250 |
600 |
10 |
30 |
980 |
〃 |
|
250-600-12 |
250 |
600 |
12 |
37 |
1450 |
〃 |
|
250-600-15 |
250 |
600 |
15 |
45 |
1450 |
〃 |
|
250-600-20 |
250 |
600 |
20 |
55 |
1450 |
〃 |
|
250-600-25 |
250 |
600 |
25 |
75 |
1450 |
〃 |
|
300-800-12 |
300 |
800 |
12 |
45 |
980 |
〃 |
|
300-480-15 |
300 |
480 |
15 |
45 |
1450 |
〃 |
|
300-600-20 |
300 |
600 |
20 |
55 |
1450 |
〃 |
|
300-800-20 |
300 |
800 |
20 |
20 |
1450 |
〃 | |
