YW Series submersible sewage pump

Summary:

YW Submersible sewage pump adopts a unique single (double) channel impeller and improves the sewage discharge. The pump can be used to transfer the waste water with fiber diameter 5 times as pump diameter or the solid particles diameter 50% as the pump diameter. Dynamic seal is for hard alloy mechanical seal and pump material is for cast iron or stainless steel.

Characteristics:

1. Double channel impeller structure is adopted to greatly improve the passing capacity of pollutants

2. The mechanical seal adopts a new type of friction pair and operates in the oil house for a long time;

3. Compact structure, small volume, low noise, significant energy saving effect, convenient maintenance and user replacement;

4, automatic control cabinet can be required according to the liquid level change, automatic control of the pump overshoot and stop, do not need to be watched by a special person, it is very convenient to use;

5. The installation method can be equipped according to the needs of users, which is greatly convenient for installation and maintenance. People do not need to enter the sump for this purpose;

6, can be used in the design range, and ensure that the motor will not overload;

7. If the pump is equipped with outdoor motor, there is no need to build a pump room, which can be directly installed and used outdoors to save money;

Application:

YW non-clog submerged pump is suitable for the seriously polluted wastewater emissions in factory and business zone, residential sewage at wastewater station, urban sewage treatment plant water system, civil air defense system drainage stand, waterworks water supply equipment, hospital, hotel of sewage, municipal engineering, construction, mining machine, rural biogas digester, irrigation and other industries, sewage containing particles, dirt, and can also be used for water and weak corrosive medium

Operation environments:

A, environment temperature is no higher than 40 degree Celsius and humidity is no more than  95% and altitude is not more than 1,000 meters.

B, medium temperature is less than 60 ℃, medium density is for 1 ~ 1.3 kg/dm3.

C. cast iron pump is for liquids with PH5 ~ 9.

D. General corrosive media can be used for stainless steel.

E. Altitude shall be no more than 1000 meters . If the above conditions are exceeded, it shall be proposed at the time of ordering, so as to provide you with more reliable products.

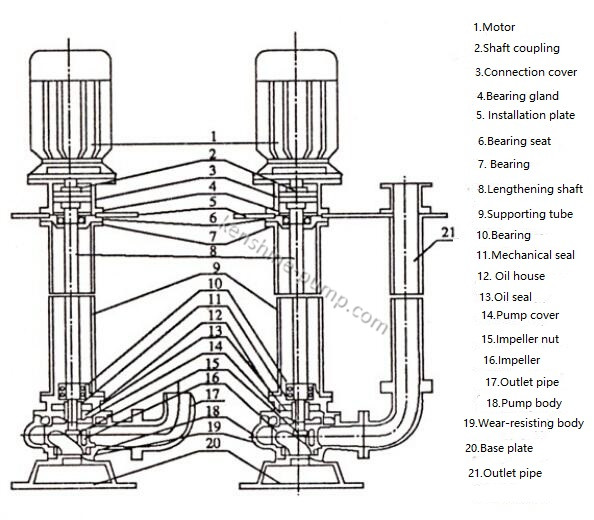

Structure drawing:

Parameter:
Model Caliber Flow rate Head Speed Motor Power Efficiency
mm m3/h M r/min kw %
25-8-22-1.1 25 8 22 2900 1.1 45
32-12-15-1.1 32 12 15 2900 1.1
40-15-15-1.5 40 15 15 2900 1.5 54
40-15-30-2.2 40 15 30 2900 2.2 54
50-20-7-0.75 50 20 7 2900 0.75 51
50-10-10-0.75 50 10 10 2900 0.75 52
50-20-15-1.5 50 20 15 290 1.5 53
50-15-25-2.2 50 15 25 2900 2.2 54
50-18-30-3 50 18 30 2900 3 55
50-40-15-4 50 40 15 2900 4 55
50-25-32-5.5 50 25 32 2900 5.5 55
50-20-40-7.5 50 50 20 2900 7.5 58
65-25-15-2.2 65 25 15 2900 2.2 50
65-37-13-3 65 37 13 2900 3 57
65-25-30-4 65 25 30 2900 4 61
65-30-40-7.5 65 30 40 2900 7.5 56
65-35-50-11 65 35 50 2900 11 45
65-35-60-15 65 35 60 2900 15 65
80-60-13-5.5 80 60 13 2900 5.5 67
80-40-7-2.2 80 40 7 1450 2.2 59
80-43-13-3 80 43 13 2900 3 70
80-40-15-4 80 40 15 2900 4 61
80-65-25-7.5 80 65 25 2900 7.5 63
100-80-10-4 100 100 10 1450 4 65
100-110-10-5.5 100 110 10 1450 5.5 65
100-100-15-7.5 100 100 15 1450 7.5 68
100-80-20-7.5 100 80 20 1450 7.5 65
100-100-25-11 100 100 25 1450 11 70
100-100-30-15 100 100 30 1450 15 65
100-100-35-18.5 100 100 35 1450 18.5 68
125-130-15-11 125 130 15 1450 11 72
125-130-20-15 125 130 20 1450 15 75
150-145-9-7.5 150 145 9 1450 7.5 76
150-180-15-15 150 180 15 1450 15 69
150-180-20-18.5 150 180 20 1450 18.5 72
150-180-25-22 150 180 25 1450 22 78
150-130-30-22 150 130 30 1450 22 78
150-180-30-30 150 180 30 1450 30 78
150-200-30-37 150 200 30 1450 37 73
200-300-7-11 200 300 7 980 11 66
200-250-11-15 200 250 11 1450 15 64
200-250-15-18.5 200 250 15 1450 18.5 73
200-400-10-22 200 400 10 1450 22 75
200-400-13-30 200 400 13 14501 30 76
200-300-15-22 200 300 15 1450 22 76
200-250-22-30 200 250 22 1450 30 71
200-350-25-37 200 350 25 1450 37 71
200-400-30-45 200 400 30 1450 45 74
250-600-9-30 250 600 9 980 30 78
250-600-12-37 250 600 12 1450 37 76
250-600-15-45 250 600 15 1450 45 73
250-600-20-55 250 600 20 1450 55 73
250-600-25-75 250 600 25 1450 75 71
300-800-12-45 300 800 12 980 45 74
300-480-15-45 300 480 15 1450 45 66
300-800-15-55 300 800 15 1450 55 73
300-600-20-55 300 600 20 1450 55 73
300-800-20-75 300 800 20 1450 75 75
300-950-20-90 300 950 20 1450 90 76
300-1000-25-110 300 1000 25 1450 110 76
300-1100-10-55 300 1100 10 1450 55 73
350-1500-15-90 350 1500 15 740 90 87
350-1200-18-90 350 1200 18 980 90 85
350-1100-28-132 350 1100 28 980 132 84
350-1000-36-160 350 1000 36 980 160 84
400-1760-7.5-55 400 1760 7.5 980 55 83
400-1500-10-75 400 1500 10 980 75 86
400-2000-13-110 400 2000 13 980 110 84
400-2000-15-132 400 2000 15 980 132 83
400-1700-22-160 400 1700 22 980 160 83
400-1500-26-160 400 1500 26 980 160 84
400-1700-30-200 400 1700 30 980 200 86
400-1800-32-250 400 1800 32 980 250 82
500-2500-10-110 500 2500 10 740 110 85
500-2600-15-160 500 2600 15 740 160 84
500-2400-22-220 500 2400 22 740 220 85
500-2650-24-250 500 2650 24 740 250 85
