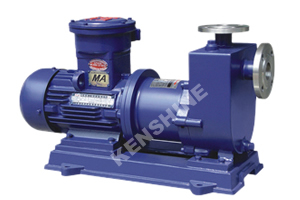

ZCQ Self Priming Magnet Pump
ZCQ Series self priming type magnet pump
Summary:
ZCQ Series self priming type magnet pump is the magnet pump with 4meter self priming height but it need not install foot valve and pour guide water. Rotary ring replaces stationary ring so that parts which contact with liquids are entirely sealed and no leak. Pump body and parts which contacts with liquids are stainless steel and ceramic and Teflon etc material to insure the good anticorrosion performance
Structure:

1

Pump body

6

Fore bearing

2

Check valve

7

Back bearing

3

Stationary ring

8

Inner magnet assembly

4

Impeller

9

Isolation sleeve

5

Seal ring





Parameter:

Model

Caliber(mm)

Head
m

Capacity
L/min

Power
KW

Speed
r/min

Voltage
V

Self priming
m/3分

Inlet

Outlet

ZCQ20-15-115

20

15

12

30

0.37

2900

380/220

3

ZCQ25-20-115

25

20

15

110

1.1

2900

380

4

ZCQ32-25-115

32

25

15

110

1.1

2900

380

4

ZCQ32-25-145

32

25

25

110

1.1

2900

380

4

ZCQ40-32-132

40

32

20

180

2.2

2900

380

4

ZCQ40-32-160

40

32

32

180

4

2900

380

4

ZCQ50-40-145

50

40

25

240

4

2900

380

4

ZCQ50-40-160

50

40

32

220

4

2900

380

4

ZCQ65-50-145

65

50

25

280

5.5

2900

380

4

ZCQ65-50-160

65

50

32

450

7.5

2900

380

4

ZCQ80-65-125

80

65

20

800

7.5

2900

380

4

ZCQ80-65-160

80

65

32

800

15

2900

380

4

ZCQ100-80-160

100

80

32

1500

22

2900

380

4

Remark: Pump body: (1Cr18Ni9Ti: SS304). Motor : Explosion proof or non-explosion proof
