| YG Pipeline Oil Pump |
 |

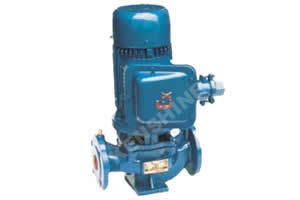

YG Series pipeline oil pump with explosion proof motor
YG series pipeline oil pump is designed and manufactured according to API610 and GB3215-82 standard. It can be used outdoor without pump house.
2.Inlet and outlet flange are on the same centric line and can be set directly into pipeline. Vertical structure let the pump small volume and convenient installation.
3.Mechanical seal with high quality has no leakage.
4.Pump is driven by explosion proof motor of explosion mark DIIBT4 to insure good explosion proof. |
| YG Series pipeline oil pump is suitable to transport non corrosive and flammable and explosive liquids in petroleum and light weave and chemical industry and machine etc industries. Medium temperature＜120℃, Density(ρ)＜1000kg/m3 |
Parameter:
|
Model |
Capacity (Q) |
Head
m |
Efficiency
% |
Speed
r/min |
Power
KW |
NPSH(r)
m |
|
m3/h |
l/s |
|
20-110 |
2.5 |
0.69 |
15 |
34 |
2800 |
0.37 |
2.3 |
|
20-160 |
2.5 |
0.69 |
32 |
25 |
2900 |
0.75 |
2.3 |
|
25-110 |
4 |
1.11 |
15 |
42 |
2900 |
0.55 |
2.3 |
|
25-125 |
4 |
1.11 |
20 |
36 |
2900 |
0.75 |
2.3 |
|
25-125A |
3.6 |
1.0 |
16 |
35 |
2900 |
0.55 |
2.3 |
|
25-160 |
4 |
1.11 |
32 |
32 |
2900 |
1.5 |
2.3 |
|
25-160A |
3.7 |
1.03 |
28 |
31 |
2900 |
1.1 |
2.3 |
|
32-100 |
4.5 |
12.5 |
12.5 |
44 |
2900 |
0.55 |
2.3 |
|
32-100(I) |
6.3 |
1.75 |
12.5 |
54 |
2900 |
0.75 |
2.3 |
|
32-125 |
5 |
1.39 |
20 |
44 |
2900 |
0.75 |
2.3 |
|
32-125A |
4.5 |
1.25 |
16 |
43 |
2900 |
0.55 |
2.3 |
|
32-160 |
6.5 |
5 |
32 |
44 |
2900 |
1.5 |
2.3 |
|
32-160A |
4 |
1.1 |
25 |
34 |
2900 |
1.1 |
2.0 |
|
32-160(I) |
6.3 |
1.75 |
32 |
40 |
2900 |
2.2 |
2.0 |
|
32-200 |
4.5 |
12.5 |
50 |
32 |
2900 |
3 |
2.0 |
|
32-200(I) |
6.3 |
1.75 |
50 |
33 |
2900 |
4 |
2.0 |
|
32-200A |
4 |
1.11 |
44 |
40 |
2900 |
2.2 |
2.0 |
|
40-100 |
6.3 |
1.75 |
12.5 |
54 |
2900 |
0.55 |
2.3 |
|
40100A |
5.6 |
1.56 |
10 |
52 |
2900 |
0.37 |
2.3 |
|
40-125 |
6.3 |
1.75 |
20 |
46 |
2900 |
1.1 |
2.3 |
|
40-125A |
5.6 |
1.56 |
16 |
45 |
2900 |
0.75 |
2.3 |
|
40-160 |
6.3 |
1.75 |
32 |
40 |
2900 |
2.2 |
2.3 |
|
40-160A |
5.9 |
1.64 |
28 |
39 |
2900 |
1.5 |
2.3 |
|
40-160B |
5.5 |
1.53 |
24 |
38 |
2900 |
1.1 |
2.3 |
|
40-200 |
6.3 |
1.75 |
50 |
33 |
2900 |
4 |
2.3 |
|
40-200A |
5.9 |
1.64 |
44 |
31 |
2900 |
3 |
2.3 |
|
40-200B |
5.3 |
1.47 |
36 |
29 |
2900 |
2.2 |
2.3 |
|
40-250 |
6.3 |
1.75 |
80 |
28 |
2900 |
7.5 |
2.3 |
|
40-250A |
5.9 |
1.64 |
70 |
28 |
2900 |
5.5 |
2.3 |
|
40-250B |
5.5 |
1.53 |
60 |
27 |
2900 |
4 |
2.3 |
|
40-100(I) |
12.5 |
3.47 |
12.5 |
62 |
2900 |
1.1 |
2.3 |
|
40-100(I)A |
11 |
3.05 |
10 |
60 |
2900 |
0.75 |
2.3 |
|
40-125(I) |
12.5 |
3.47 |
20 |
58 |
2900 |
1.5 |
2.3 |
|
40-125(I)A |
11 |
3.05 |
16 |
57 |
2900 |
1.1 |
2.3 |
|
40-160(I) |
12.5 |
3.47 |
32 |
52 |
2900 |
3 |
2.3 |
|
40-160(I)A |
11.7 |
3.25 |
28 |
51 |
2900 |
2.2 |
2.3 |
|
40-160(I)B |
10.4 |
2.89 |
22 |
50 |
2900 |
1.5 |
2.3 |
|
40-200(I) |
12.5 |
3.47 |
50 |
46 |
2900 |
5.5 |
2.3 |
|
40-200(I)A |
11.7 |
3.25 |
44 |
45 |
2900 |
4 |
2.3 |
|
40-200(I)B |
10.6 |
2.94 |
36 |
44 |
2900 |
3 |
2.3 |
|
40-250(I) |
12.5 |
3.47 |
80 |
38 |
2900 |
11 |
2.3 |
|
40-250(I)A |
11.6 |
3.22 |
70 |
38 |
2900 |
7.5 |
2.3 |
|
40-250(I)B |
10.8 |
3.0 |
60 |
37 |
2900 |
7.5 |
2.3 |
|
40-250(I)C |
10.0 |
2.78 |
52 |
36 |
2900 |
5.5 |
2.3 |
|
50-100 |
12.5 |
3.47 |
12.5 |
62 |
2900 |
1.1 |
2.3 |
|
50-100A |
11 |
3.05 |
10 |
60 |
2900 |
0.75 |
2.3 |
|
50-125 |
12.5 |
3.47 |
20 |
58 |
2900 |
1.5 |
2.3 |
|
Model |
Capacity(Q) |
Head
m |
Efficiency
% |
Speed
r/min |
Power
KW |
NPSH(r)
m |
|
m3/h |
l/s |
|
50-125A |
11 |
3.05 |
16 |
57 |
2900 |
1.1 |
2.3 |
|
50-160 |
12.5 |
3.47 |
32 |
52 |
2900 |
3 |
2.3 |
|
50-160A |
11.7 |
3.25 |
28 |
51 |
2900 |
2.2 |
2.3 |
|
50-160B |
10.4 |
2.89 |
22 |
50 |
2900 |
1.5 |
2.3 |
|
50-200 |
12.5 |
3.47 |
50 |
46 |
2900 |
5.5 |
2.3 |
|
50-200A |
11.7 |
3.25 |
44 |
45 |
2900 |
4 |
2.3 |
|
50-200B |
10.6 |
2.94 |
36 |
44 |
2900 |
3 |
2.3 |
|
50-250 |
12.5 |
3.47 |
80 |
38 |
2900 |
11 |
2.3 |
|
50-250A |
11.6 |
3.22 |
70 |
38 |
2900 |
7.5 |
2.3 |
|
50-250B |
10.8 |
3.0 |
60 |
37 |
2900 |
7.5 |
2.3 |
|
50-250C |
10.0 |
2.78 |
52 |
36 |
2900 |
5.5 |
2.3 |
|
50-100(I) |
25 |
6.94 |
12.5 |
69 |
2900 |
1.5 |
2.5 |
|
50-100(I)A |
22.3 |
6.19 |
10 |
67 |
2900 |
1.1 |
2.5 |
|
50-125(I) |
25 |
6.94 |
20 |
68 |
2900 |
3 |
2.5 |
|
50-125(I)A |
22.3 |
6.19 |
16 |
66 |
2900 |
2.2 |
2.5 |
|
50-160(I) |
25 |
6.94 |
32 |
63 |
2900 |
4 |
2.5 |
|
50-160(I)A |
23.4 |
6.5 |
28 |
62 |
2900 |
4 |
2.5 |
|
50-160(I)B |
21.6 |
6.0 |
24 |
58 |
2900 |
3 |
2.5 |
|
50-200(I) |
25 |
6.94 |
50 |
58 |
2900 |
7.5 |
2.5 |
|
50-200(I)A |
23.5 |
6.53 |
44 |
57 |
2900 |
7.5 |
2.5 |
|
50-200(I)B |
21.8 |
6.06 |
38 |
55 |
2900 |
5.5 |
2.5 |
|
50-250(I) |
25 |
6.94 |
80 |
50 |
2900 |
15 |
2.5 |
|
50-250(I)A |
23.4 |
6.5 |
70 |
50 |
2900 |
11 |
2.5 |
|
50-250(I)B |
21.6 |
6.0 |
60 |
49 |
2900 |
11 |
2.5 |
|
50-315(I) |
25 |
6.94 |
125 |
40 |
2900 |
30 |
2.5 |
|
50-315(I)A |
23.7 |
6.58 |
113 |
40 |
2900 |
22 |
2.5 |
|
50-315(I)B |
22.5 |
6.25 |
101 |
39 |
2900 |
18.5 |
2.5 |
|
50-315(I)C |
20.6 |
5.72 |
85 |
38 |
2900 |
15 |
2.5 |
|
65-100 |
25 |
6.94 |
12.5 |
69 |
2900 |
1.5 |
2.5 |
|
65-100A |
22.3 |
6.19 |
10 |
67 |
2900 |
1.1 |
2.5 |
|
65-125 |
25 |
6.94 |
20 |
68 |
2900 |
3 |
2.5 |
|
65-125A |
22.3 |
6.19 |
16 |
66 |
2900 |
2.2 |
2.5 |
|
65-160 |
25 |
6.94 |
32 |
63 |
2900 |
4 |
2.5 |
|
65-160A |
23.4 |
6.5 |
28 |
62 |
2900 |
4 |
2.5 |
|
65-160B |
21.6 |
6.0 |
24 |
58 |
2900 |
3 |
2.5 |
|
65-200 |
25 |
6.94 |
50 |
58 |
2900 |
7.5 |
2.5 |
|
65-200A |
23.5 |
6.53 |
44 |
57 |
2900 |
7.5 |
2.5 |
|
65-200B |
21.8 |
6.06 |
38 |
55 |
2900 |
5.5 |
2.5 |
|
65-250 |
25 |
6.94 |
80 |
50 |
2900 |
15 |
2.5 |
|
65-250A |
23.4 |
6.5 |
70 |
50 |
2900 |
11 |
2.5 |
|
65-250B |
21.6 |
6.0 |
60 |
49 |
2900 |
11 |
2.5 |
|
65-315 |
25 |
6.94 |
125 |
40 |
2900 |
30 |
2.5 |
|
65-315A |
23.7 |
6.58 |
113 |
40 |
2900 |
22 |
2.5 |
|
65-315B |
22.5 |
6.25 |
101 |
39 |
2900 |
18.5 |
2.5 |
|
65-315C |
20.6 |
5.72 |
85 |
38 |
2900 |
15 |
2.5 |
|
65-100(I) |
50 |
13.9 |
12.5 |
73 |
2900 |
3 |
3.0 |
|
65-100(I)A |
44.7 |
12.4 |
10 |
72 |
2900 |
2.2 |
3.0 |
|
65-125(I) |
50 |
13.9 |
20 |
72.5 |
2900 |
5.5 |
3.0 |
|
Model |
Capacity(Q) |
Head
m |
Efficiency
% |
Speed
r/min |
Power
KW |
NPSH(r)
m |
|
m3/h |
l/s |
|
65-125(I)A |
45 |
12.5 |
16 |
71 |
2900 |
4 |
3.0 |
|
65-160(I) |
50 |
13.9 |
32 |
71 |
2900 |
7.5 |
3.0 |
|
65-160(I)A |
46.7 |
13.0 |
28 |
70 |
2900 |
7.5 |
3.0 |
|
65-160(I)B |
43.3 |
12.0 |
24 |
69 |
2900 |
5.5 |
3.0 |
|
65-200(I) |
50 |
13.9 |
50 |
67 |
2900 |
15 |
3.0 |
|
65-200(I)A |
47 |
13.1 |
44 |
66 |
2900 |
11 |
3.0 |
|
65-200(I)B |
43.5 |
12.1 |
38 |
65 |
2900 |
7.5 |
3.0 |
|
65-250(I) |
50 |
13.9 |
80 |
59 |
2900 |
22 |
3.0 |
|
65-250(I)A |
46.7 |
13.0 |
70 |
59 |
2900 |
18.5 |
3.0 |
|
65-250(I)B |
43.3 |
12.0 |
60 |
58 |
2900 |
15 |
3.0 |
|
65-315(I) |
50 |
13.9 |
125 |
54 |
2900 |
37 |
3.0 |
|
65-315(I)A |
46.5 |
12.9 |
110 |
54 |
2900 |
30 |
3.0 |
|
65-315(I)B |
44.5 |
12.4 |
100 |
53 |
2900 |
30 |
3.0 |
|
65-315(I)C |
41 |
11.4 |
85 |
51 |
2900 |
22 |
3.0 |
|
80-100 |
50 |
13.9 |
12.5 |
73 |
2900 |
3 |
3.0 |
|
80-100A |
44.7 |
12.5 |
10 |
72 |
2900 |
2.2 |
3.0 |
|
80-125 |
50 |
13.9 |
20 |
72.5 |
2900 |
5.5 |
3.0 |
|
80-125A |
45 |
12.5 |
16 |
71 |
2900 |
4 |
3.0 |
|
80-160 |
50 |
13.9 |
32 |
71 |
2900 |
7.5 |
3.0 |
|
80-160A |
46.7 |
13.0 |
28 |
70 |
2900 |
7.5 |
3.0 |
|
80-160B |
43.3 |
12.0 |
24 |
69 |
2900 |
5.5 |
3.0 |
|
80-200 |
50 |
13.9 |
50 |
67 |
2900 |
15 |
3.0 |
|
80-200A |
47 |
13.1 |
44 |
66 |
2900 |
11 |
3.0 |
|
80-200B |
43.5 |
12.1 |
38 |
65 |
2900 |
7.5 |
3.0 |
|
80-250 |
50 |
13.9 |
80 |
59 |
2900 |
22 |
3.0 |
,
|
80-250A |
46.7 |
13.0 |
70 |
59 |
2900 |
18.5 |
3.0 |
|
80-250B |
43.3 |
12.0 |
60 |
58 |
2900 |
15 |
3.0 |
|
80-315 |
50 |
13.9 |
125 |
54 |
2900 |
37 |
3.0 |
|
80-315A |
46.5 |
12.9 |
110 |
54 |
2900 |
30 |
3.0 |
|
80-315B |
44.5 |
12.4 |
100 |
53 |
2900 |
30 |
3.0 |
|
80-315C |
41 |
11.4 |
85 |
51 |
2900 |
22 |
3.0 |
|
80-350 |
50 |
13.9 |
150 |
66 |
2900 |
55 |
3.0 |
|
80-350A |
44.5 |
12.4 |
142 |
65 |
2900 |
45 |
3.0 |
|
80-350B |
41 |
11.4 |
135 |
62 |
2900 |
37 |
3.0 |
|
80-100(I) |
100 |
27.8 |
12.5 |
76 |
2900 |
5.5 |
4.5 |
|
80-100(I)A |
89 |
24.7 |
10 |
74 |
2900 |
4 |
4.5 |
|
80-125(I) |
100 |
27.8 |
20 |
76 |
2900 |
11 |
4.5 |
|
80-125(I)A |
89 |
24.7 |
16 |
74 |
2900 |
7.5 |
4.5 |
|
80-160(I) |
100 |
27.8 |
32 |
76 |
2900 |
15 |
4.5 |
|
80-160(I)A |
93.5 |
26.0 |
28 |
74 |
2900 |
11 |
4.5 |
|
80-160(I)B |
86.6 |
24.1 |
24 |
72 |
2900 |
11 |
4.5 |
|
80-200(I) |
100 |
27.8 |
50 |
74 |
2900 |
2 |
4.5 |
|
80-200(I)A |
93.5 |
26.0 |
44 |
73 |
2900 |
18.5 |
4.5 |
|
80-200(I)B |
87 |
24.2 |
38 |
71 |
2900 |
15 |
4.5 |
|
80-250(I) |
100 |
27.8 |
80 |
69 |
2900 |
37 |
4.5 |
|
80-250(I)A |
93.5 |
26.0 |
70 |
68 |
2900 |
30 |
4.5 |
|
80-250(I)B |
87 |
24.2 |
60 |
66 |
2900 |
30 |
4.5 |
|
80-315(I) |
100 |
27.8 |
125 |
66 |
2900 |
75 |
4.5 |
|
Model |
Capacity (Q) |
Head
m |
Efficiency
% |
Speed
r/min |
Power
KW |
NPSH(r)
m |
|
m3/h |
l/s |
|
80-315(I)A |
95 |
26.4 |
113 |
66 |
2900 |
55 |
4.0 |
|
80-315(I)B |
90 |
25 |
101 |
65 |
2900 |
45 |
4.0 |
|
80-315(I)C |
82 |
22.8 |
85 |
63 |
2900 |
37 |
4.0 |
|
100-100 |
100 |
27.8 |
12.5 |
76 |
2900 |
5.5 |
4.5 |
|
100-100A |
89 |
47 |
10 |
74 |
2900 |
4 |
4.5 |
|
100-125 |
100 |
27.8 |
20 |
76 |
2900 |
11 |
4.5 |
|
100-125A |
89 |
24.7 |
16 |
74 |
2900 |
7.5 |
4.5 |
|
100-160 |
100 |
27.8 |
32 |
76 |
2900 |
15 |
4.5 |
|
100-160A |
93.5 |
26.0 |
28 |
74 |
2900 |
11 |
4.5 |
|
100-160B |
86.6 |
24.1 |
24 |
72 |
2900 |
11 |
4.5 |
|
100-200 |
100 |
27.8 |
50 |
74 |
2900 |
22 |
4.0 |
|
100-200A |
93.5 |
26.0 |
44 |
73 |
2900 |
18.5 |
4.0 |
|
100-200B |
87 |
24.2 |
38 |
71 |
2900 |
15 |
4.0 |
|
100-250 |
100 |
27.8 |
80 |
69 |
2900 |
37 |
4.0 |
|
100-250A |
93.5 |
26.0 |
70 |
68 |
2900 |
30 |
4.0 |
|
100-250B |
87 |
24.2 |
60 |
66 |
2900 |
30 |
4.0 |
|
100-315 |
100 |
27.8 |
125 |
66 |
2900 |
75 |
4.0 |
|
100-315A |
95 |
26.4 |
113 |
66 |
2900 |
55 |
4.0 |
|
100-315B |
90 |
25 |
101 |
65 |
2900 |
45 |
4.0 |
|
100-315C |
82 |
22.8 |
85 |
63 |
2900 |
37 |
4.0 |
|
100-100(I) |
160 |
44.4 |
12.5 |
73 |
2900 |
11 |
4.5 |
|
100-125(I) |
160 |
44.4 |
20 |
74 |
2900 |
15 |
4.5 |
|
100-125(I)A |
140 |
39 |
17 |
72 |
2900 |
11 |
4.5 |
|
100-160(I) |
160 |
44.4 |
32 |
32 |
2900 |
22 |
5.6 |
|
100-160(I)A |
140 |
39 |
28 |
28 |
2900 |
18.5 |
5.0 |
|
100-200(I) |
100 |
44.4 |
50 |
50 |
2900 |
37 |
5.2 |
|
100-200(I)A |
140 |
39 |
45 |
45 |
2900 |
30 |
4.5 |
|
100-200(I)B |
100 |
27.8 |
40 |
40 |
2900 |
22 |
4.5 |
|
100-250(I) |
160 |
44.4 |
80 |
80 |
2900 |
55 |
4.8 |
|
100-250(I)A |
140 |
39 |
72 |
72 |
2900 |
45 |
4.5 |
|
100-250(I)B |
100 |
27.8 |
65 |
65 |
2900 |
37 |
4.5 |
|
100-350 |
100 |
27.8 |
150 |
150 |
2900 |
90 |
4.0 |
|
100-350A |
87 |
24.2 |
142 |
142 |
2900 |
75 |
4.0 |
|
100-350B |
82 |
22.8 |
135 |
135 |
2900 |
55 |
4.0 |
|
125-100 |
160 |
44.4 |
12.5 |
12.5 |
2900 |
11 |
4.0 |
|
125-100A |
143 |
39.7 |
10 |
10 |
2900 |
7.5 |
4.0 |
|
125-125 |
160 |
44.4 |
20 |
20 |
2900 |
15 |
4.0 |
|
125-125A |
143 |
39.7 |
16 |
16 |
2900 |
11 |
4.0 |
|
125-160 |
160 |
44.4 |
32 |
32 |
2900 |
22 |
4.0 |
|
125-160A |
150 |
41.7 |
28 |
28 |
2900 |
18.5 |
4.0 |
|
125-160B |
138 |
38.3 |
24 |
24 |
2900 |
15 |
4.0 |
|
125-200 |
160 |
44.4 |
50 |
50 |
2900 |
37 |
5.5 |
|
125-200A |
150 |
41.7 |
44 |
44 |
2900 |
30 |
5.5 |
|
125-200B |
138 |
38.3 |
37.5 |
37.5 |
2900 |
22 |
5.5 |
|
125-250 |
160 |
44.4 |
80 |
80 |
2900 |
55 |
5.0 |
|
125-250A |
150 |
41.7 |
70 |
70 |
2900 |
45 |
5.5 | |
| more info |
